ULTRA-TRAC® APL Acoustic Pipe Locator

SENSIT ULTRA-TRAC APL Acoustic Pipe Locator

ULTRA-TRAC® APL is the perfect choice when it is necessary to accurately locate unmarked, underground piping systems.



Acoustic Pipe Locator is ideal for finding plastic pipe and systems with missing or broken tracer wire. Natural gas pipelines, water and sewer laterals are easily traced using state-of-the-art acoustic technology.



APL will significantly reduce the number of unlocatable pipes and identify potential cross bore risk locations when using HDD technologies.

ULTRA-TRAC APL Acoustic Pipe Locator
APL Benefits

• Senses through most surfaces
• Easy to use and interpret
• Locates systems in minutes
• No system access required

• Detects all materials up to 8 m deep

Materials Sensed

• Plastic Pipe

• PVC

• Metallic Pipe

• Concrete Pipe
• Cast Iron

• Ductile Iron

• Clay Tile

APL Kit

Ultra-Trac APL
Storage Case
Recharge Adapter (110V - 220VAC)
Measuring Tape
Instruction Manual
Quick Start Guide

Video

SENSIT APL

SENSIT APL
Ultra-Trac APL Acoustic Pipe Locator Start-up Sequence - Discontinued

Ultra-Trac APL Acoustic Pipe Locator Start-up Sequence - Discontinued

01:44
Play Video
Ultra-Trac APL with 3D Pipe Mapping - Discontinued

Ultra-Trac APL with 3D Pipe Mapping - Discontinued

06:28
Play Video
Locating with the ULTRA-TRAC® APL - Discontinued

Locating with the ULTRA-TRAC® APL - Discontinued

03:12
Play Video
APL Real Time 20 Foot Grid Using 6 inch Slice Intervals - Discontinued

APL Real Time 20 Foot Grid Using 6 inch Slice Intervals - Discontinued

12:03
Play Video

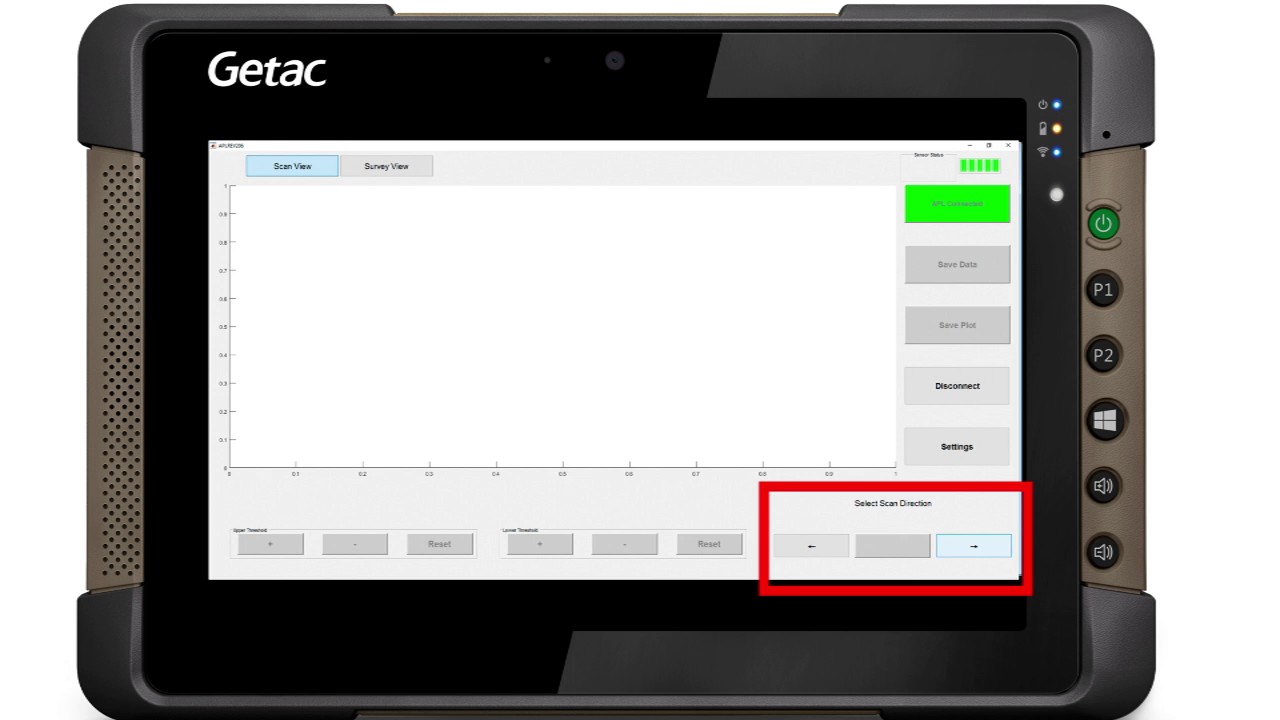

Now available with a detachable Tablet
SENSIT, ULTRA-TRAC, APL, Acoustic Pipe Locator, pipeline locator, subsurface localization, plastic pipe detector, find plastic pipes, APL, Ultra-Trac APL, acoustic detection, finding burried pipes

APL features an integrated tablet which allows the user to view scan data and 3D images of the surveyed underground area. The APL's on-board software now features improved gain correction to eliminate false-positives. See the 3D Pipe Mapping video to learn more.

As standard on new EU-APL's and available for update on all existing APL's regardless age.

How does contour mapping and 3D pipe mapping of subsurface pipes work?

APL pipe detection examples with contour mapping software
1 Pipe, 1.0 m deep
Concrete, 200 mm ø
