Single Gas Clip (SGC)

Gas Clip, single gas clip, sgc, single gas detector, O2 detector, oxygen detector, CO detector, H2S detector, IP67 gas detector

Whether it’s the hottest environment or the coldest, our Single Gas Clip is designed and tested to provide worker safety in the harshest working conditions. At Gas Clip Technologies, we enhance customer safety by using the latest technology. We test 100% of our portable gas detectors, not just a random sample of units. That’s why we can offer a low cost of ownership on our gas detectors. There are no hidden service charges, no maintenance fees– just reliable units that will help your facility workers and contractors do their jobs safely, productively and cost effectively.

Bump Check Reminder: All Single Gas Clip models come standard with the bump check reminder feature. When activated, if the detector has not been bump tested within the designated interval, the instrument will emit both a flash and show “buP” across the screen alerting the user, peer, or supervisor that the gas bump test is due. In addition to the flash, the TEST Icon will continually display in the upper left hand corner. This alert increases user accountability and allows for easier policy enforcement. Note the flash feature can be disabled within the IR Link software, if desired.

Programmable unique 6 digit ID: Considering the rugged environment these instruments are often exposed to and used in, identification via serial number, sticker, or marker can be unreliable. With the unique ID feature, units can be identified with a simple push of a button. Available using both limited alpha and full numeric characters, each unit can be assigned a unique ID utilizing, for example an employee ID number, last 4 digits of SSN, or a job code. Unique ID’s will also appear on event log reports and bump test logs. ID’s will be displayed on the detector screen in segments of 3 digits at a time (first 3 digits, then last 3 digits).

Adjustable alarm set points: To adapt with changing health and safety gas exposure regulations for workers in industrial environments, the Single Gas Clip alarm set points can be easily adjusted via the IR Link software or through the SGC Dock. Detectors can also be special ordered with custom alarm set points. Please contact your Gas Clip Technologies representative for more information.

 Click To Enlarge Image

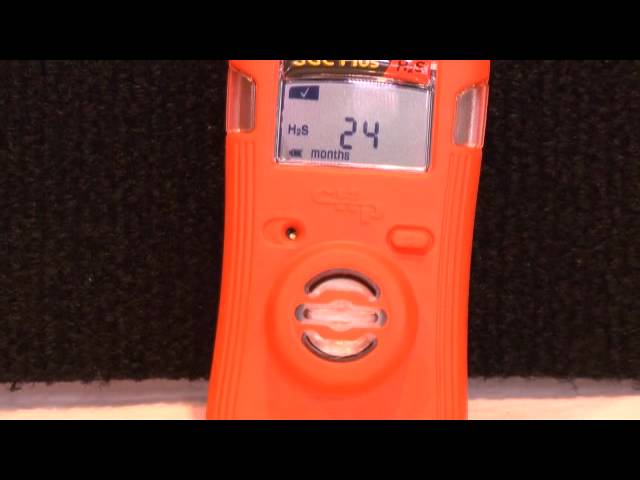

Single Gas Clip
single Gas Clip
single Gas Clip
single Gas Clip
single Gas Clip
  • Unmatched sensor reliability for H2S, CO, & O2

  • Adjustable alarm set points

  • Real-time gas reading capability

  • 0.1 ppm resolution for H2S sensor and display

  • Two-way IR communication for event downloads, bump tests & updates

  • Programmable unit identification

  • Calibration optional

  • “Bump check” confirmation/identification

  • IP67

  • H2S: 0-100 ppm

  • CO: 0-300 ppm

  • O2: 0-30% vol


  • UL-913 & CAN/CSA-C22.2 No. 157

  • Class I Divisions 1 & 2, Groups A, B, C and D Class I, Zone 0, AEx ia IIC T4 Ga
    UL 60079-0, UL 60079-11

  • ATEX: II 1 G T4 Ex ia IIC T4

  • IECEx: EX ia IIC T4

  • InMetro: IEx 15.0058 Ex ia IIC T4 Ga (-40 ̊C (H2S,CO) / -35 ̊C (O2) ≤ Ta ≤ +50 ̊C)
